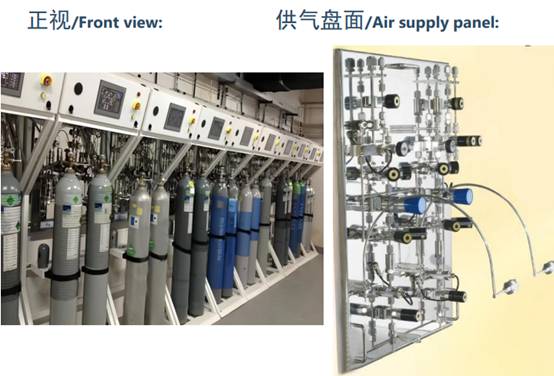

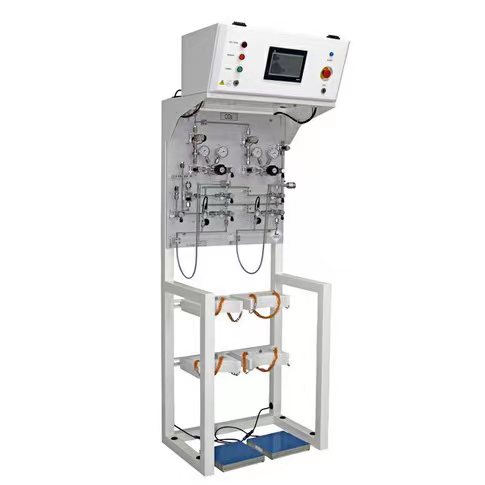

气瓶架，气体输送设备。多用于惰性气体，可根据所用气瓶的尺寸，将气瓶固定于气瓶架上，保证瓶身不脱落、不倾斜，安全稳定的输送气体。

Gas cylinder rack, gas conveying equipment. It is commonly used for inert gases and can be fixed on the cylinder rack according to the size of the cylinder used, ensuring that the cylinder body does not fall off or tilt, and transporting gas safely and stably.

技术参数：

规格：双工艺气瓶，全自动/半自动/手动切换

■吹扫：自吹扫

■盘面规格：1/4”盘面

■标准配备：防腐机械架，欠压报警，防爆控制柜，主材 SS316L

■控制柜电源：220VAC, 50H 乙 25W,漏电保护

·选配：工艺气瓶重量监控器，泄漏报警，远程切断，工艺气体超压报警，盘面加热及温控装置，报警信 号手机短信与电话通知。加配汇流管可改为多工艺气瓶使用

■可根据客户要求定制

Technical parameters: Specifications: double process gas cylinder, automatic switching

■ Purge: Self-blowing

■ Plate size: 1/4" plate surface

■ Standard equipment: anti-corrosion mechanical frame, under-pressure alarm, explosion-proof control cabinet, main material SS316L

■ Control cabinet power supply: 220VAC, 50HZ, 25W, leakage protection

■ Optional: process gas cylinder weight monitor, leakage alarm, remote cut-off, process gas overpressure alarm, disk heating and temperature control device, alarm signal mobile phone SMS and telephone notification.

适用范围：适用于高校实验室、材料分析实验室、芯片半导体、光伏太阳能电池、生物医药工程、微电子新材料等行业。
